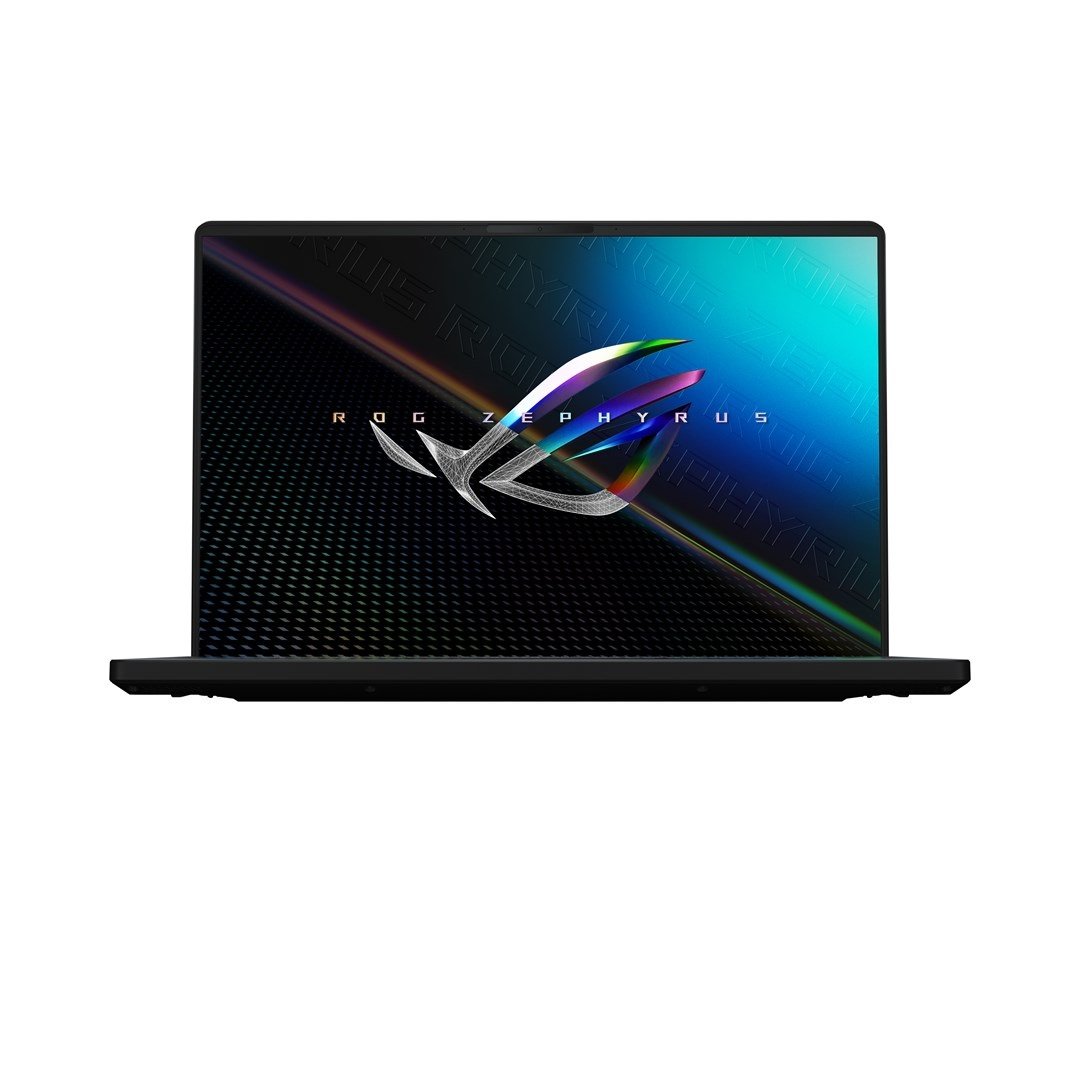

ASUS ROG Zephyrus M16 GU603ZM-K8061W notebook i7-12700H 40.6 cm (16″) WUXGA Intel® Core™ i7 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (802.11ax) Windows 11 Home Black

Περιγραφή

Product colour Black

Display
Display diagonal 40.6 cm (16″)
Display resolution 1920 x 1200 pixels
Touchscreen N
HD type WUXGA
Panel type IPS
Anti-glare screen Y
Maximum refresh rate 165 Hz

Processor
Processor model i7-12700H
Processor family Intel® Core™ i7
Processor boost frequency 4.7 GHz
Processor cores 14
Processor cache 24 MB

Memory
Internal memory 16 GB
Internal memory type DDR5-SDRAM
Memory clock speed 4800 MHz
Memory form factor On-board + SO-DIMM
Memory slots SO-DIMM
Maximum internal memory 40 GB

Storage
Total storage capacity 1 TB
Storage media SSD
Total SSDs capacity 1 TB
Number of SSDs installed 1
SSD capacity 1 TB
SSD interface NVMe, PCI Express 4.0
NVMe Y
SSD form factor M.2
Optical drive type N
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash)

Graphics
Discrete graphics card model NVIDIA GeForce RTX 3060
On-board graphics card Y
Discrete graphics card Y
On-board graphics card model Intel Iris Xe Graphics
Discrete graphics card memory 6 GB
Discrete graphics memory type GDDR6

Audio
Audio system Dolby Atmos
Number of built-in speakers 4
Built-in microphone Y

Camera
Front camera Y
Front camera HD type HD
Infrared (IR) camera Y

Network
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards Wi-Fi 6E (802.11ax)
Mobile network connection N
Antenna type 2×2
Ethernet LAN Y
Ethernet LAN data rates 10100 Mbit/s1000 Mbit/sExpand
Bluetooth Y
Bluetooth version 5.2

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.0b
Thunderbolt 4 ports quantity 1
Combo headphone/mic port Y
Charging port type DC-in jack
USB Type-C DisplayPort Alternate Mode Y
USB Power Delivery Y

Keyboard
Pointing device Touchpad
Numeric keypad N
Keyboard backlit Y
Keyboard backlit colour RGB

Software
Operating system architecture 64-bit
Operating system installed Windows 11 Home

Processor special features
Intel Flex Memory Access Y
Embedded options available N

Battery
Battery technology Lithium-Ion (Li-Ion)
Number of battery cells 4
Battery capacity 90 Wh

Power
AC adapter power 240 W
AC adapter input voltage 100 – 240 V
AC adapter output current 12 A
AC adapter output voltage 20 V

Security
Cable lock slot Y
Cable lock slot type Kensington
Face recognition Y
Windows Hello Y
Password protection Y

Weight & dimensions
Width 355 mm
Depth 243 mm
Height 19.9 mm
Weight 2 kg
