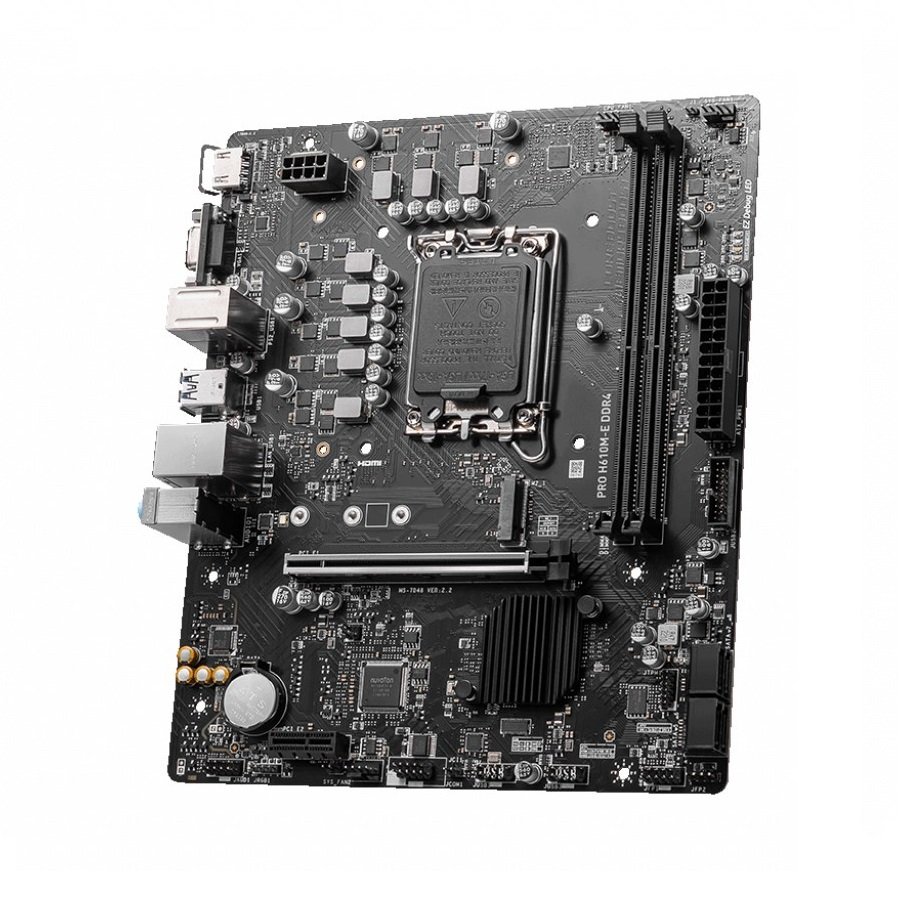

MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor socket LGA 1700
Compatible processor series Intel® Core™ i9
Maximum number of SMP processors 1
Supported processor sockets LGA 1700

Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
Supported memory clock speeds 2133 MHz2666293330003200Fold
Maximum internal memory 64 GB

Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III

Graphics
Parallel processing technology support Not supported

Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
Number of chassis fan connectors 1
TPM connector Y
12V power connector Y

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 2.1

Network
Ethernet LAN Y
Ethernet interface type Gigabit Ethernet
Wi-Fi N

Features
Motherboard chipset Intel H610
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Motherboard chipset family Intel

BIOS
BIOS type UEFI AMI
Clear CMOS jumper Y

Weight & dimensions
Height 65 mm

Packaging content
Cables included SATA
Drivers included Y

Other features
Weight 760 g
